Screeny hide
Screeny Hide is a shielding system designed for total architectural inte¬gration. Its strong point is the perfect concealment of the box and the gui¬de within the masonry: once installed, it is completely flush with the plaster, having a minimal visual impact. The use of the same fabric on the box and guide creates a seamless transition between wall and ceiling, ensuring aesthetic continuity.
It is designed for use in new buildings or during renovations of existing structures. Any maintenance interventions will be easily accessible, thanks to the inspectable fabrics. Available in zip or cable versions.
A system designed to disappear

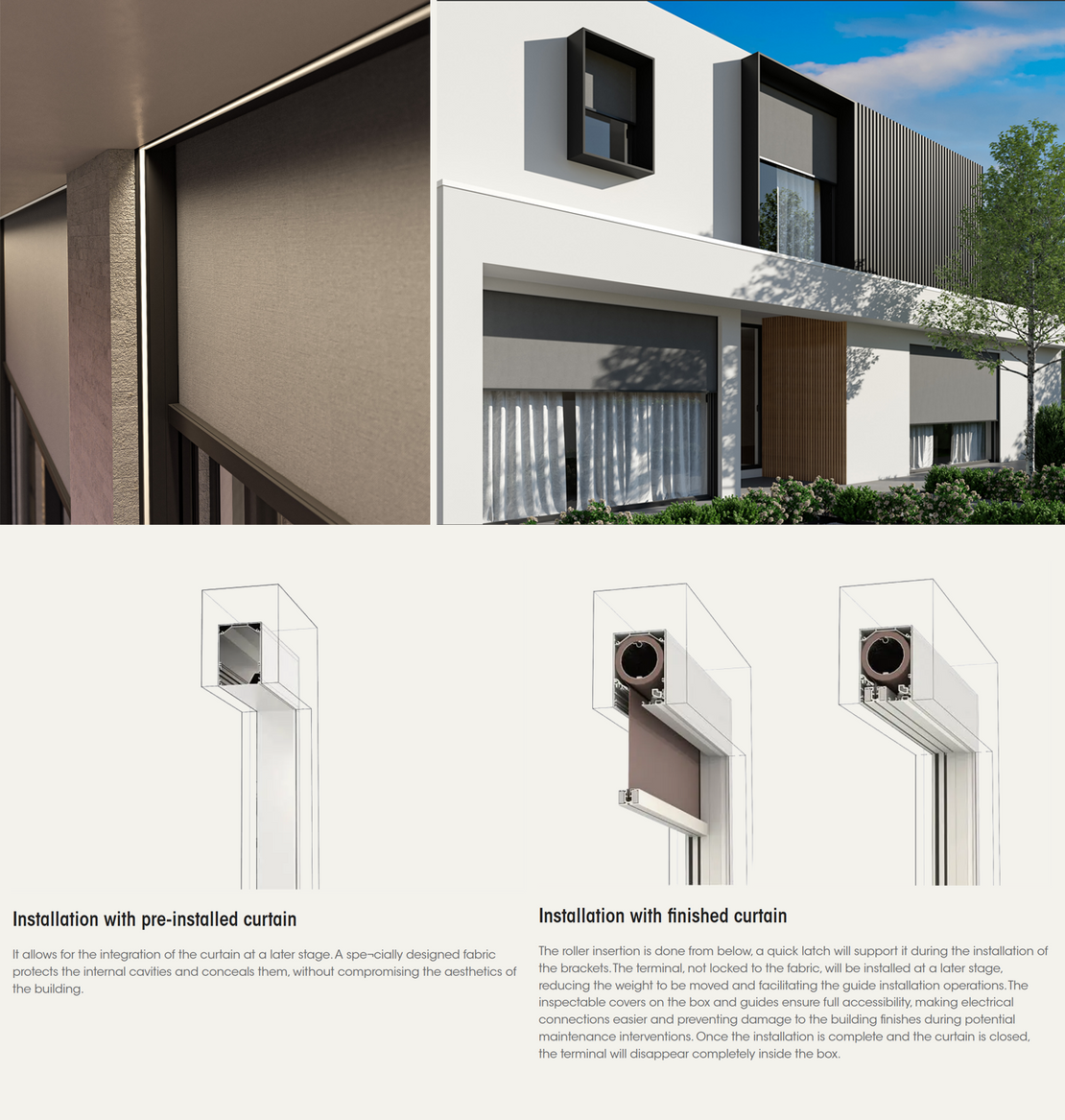

It is possible to install Screeny Hide during the construction phase. Thanks to a specially designed polystyrene profile, the internal cavi¬ties will be protected throughout all finishing stages of the building. Once the finishing stages are completed, installation of the finished curtain or the pre-configured version can proceed.

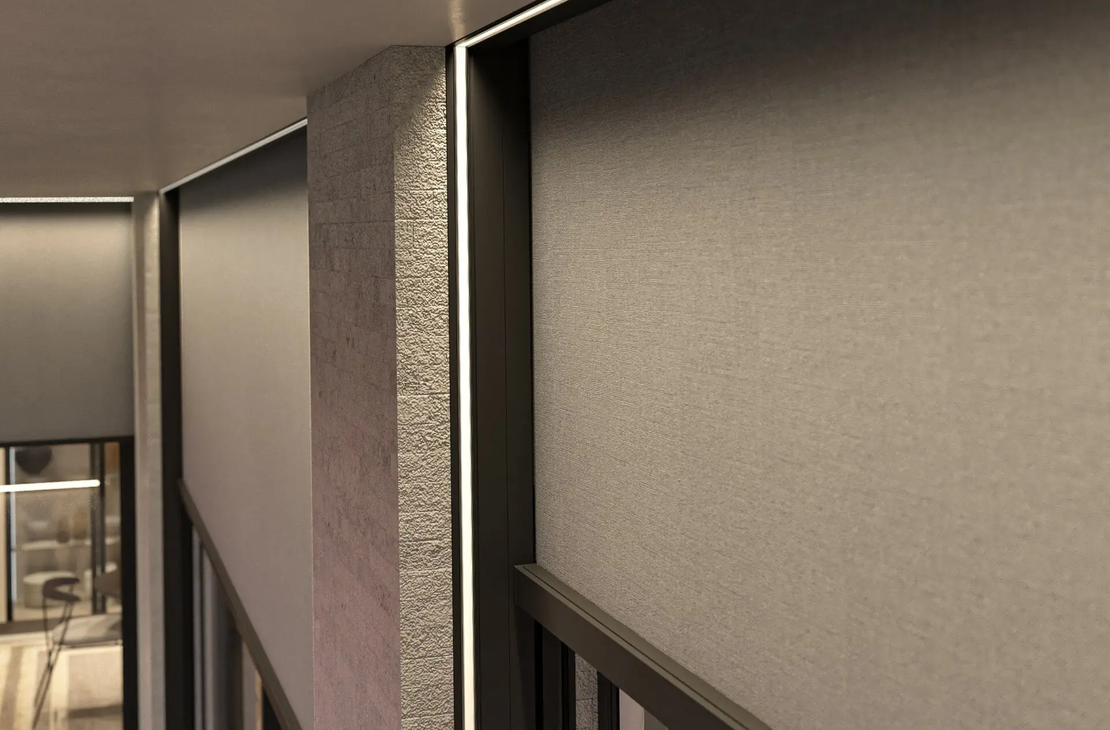

SCREENY HIDE LED-VERSION
Screeny Hide is designed for the integration of dimmable LEDs, offering extensive lighting customization options. The lighting can be installed on one, two, or all sides of the system, allowing for the creation of diverse light and shadow scenarios in line with the aesthetic and functional requirements of the architectural project.
Screeny Hide 110 GPZ H2F
- For external wall installation with Zip system
- Wide range of technical fabrics (over 500 options)
- High resistance to wind and water
- Daylighting concept
- Perfect integration into modern architecture
- Wind resistance, grade 6
- Maximum width: 450 cm
- Maximum height: 300 cm
- Tested and certified CE according to technical regulation 13561

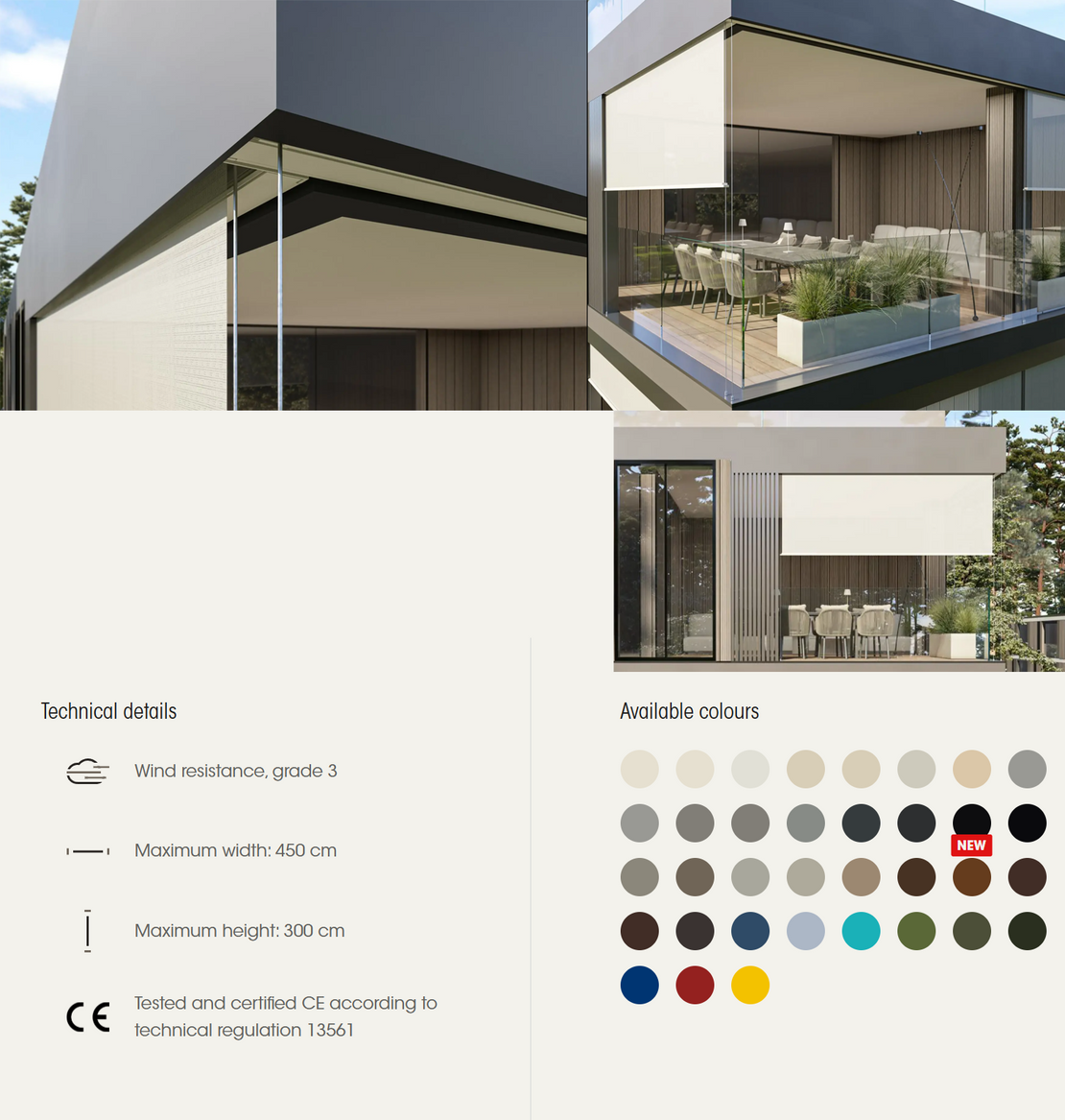

Screeny Hide 110 GC H4D
KE meets the standards of Daylighting, the designing culture for architectures open to natural light that pays attention to materials, maximizing visive comfort and reducing energy consumption, thanks to the system of roller blinds Screeny.
Reducing energy costs and improving the quality of living spaces is a highly relevant topic in new constructions. Great attention is given to the perception of light within spaces, as well as the overall energy balance of the home, without neglecting aesthetics and harmony in the design.
The new Screeny Hide integrates in this context: a versatile roller blind system that integrates perfectly with contemporary architecture. Designed to be applied to new constructions and renovations, it features a cassette, a terminal bar and runners concealed within the wall, making it completely invisible when the blind is rolled up.
The integration of the same cover profile on the bottom of the cassette and runner, creates a seamless connection between the ceiling and the walls of the recess. The cassette disappears completely inside the window frame and the blind becomes one with the façade for a flawless aesthetical result.
Screeny Hide is available in various configurations: with zip or cable system; installation to the wall, to the ceiling or freestanding. It answers multiple design needs covering areas up to 450cm in width. The system also guarantees high stability and resistance to the wind. It can be operated via remote control or smartphone thanks to the latest home automation systems, enhancing safety during use, with the option for battery power supported by solar panels.
Details
- Maximum dimensions 450x300
- More than 500 fabrics to choose
- With cable guide
Screeny Hide 110 GPZ H3F
- Essential design and perfect automation
- For external wall installation with Zip system
- Versatile roller blind system that integrates perfectly with contemporary architecture
- Maximum dimensions 450x300

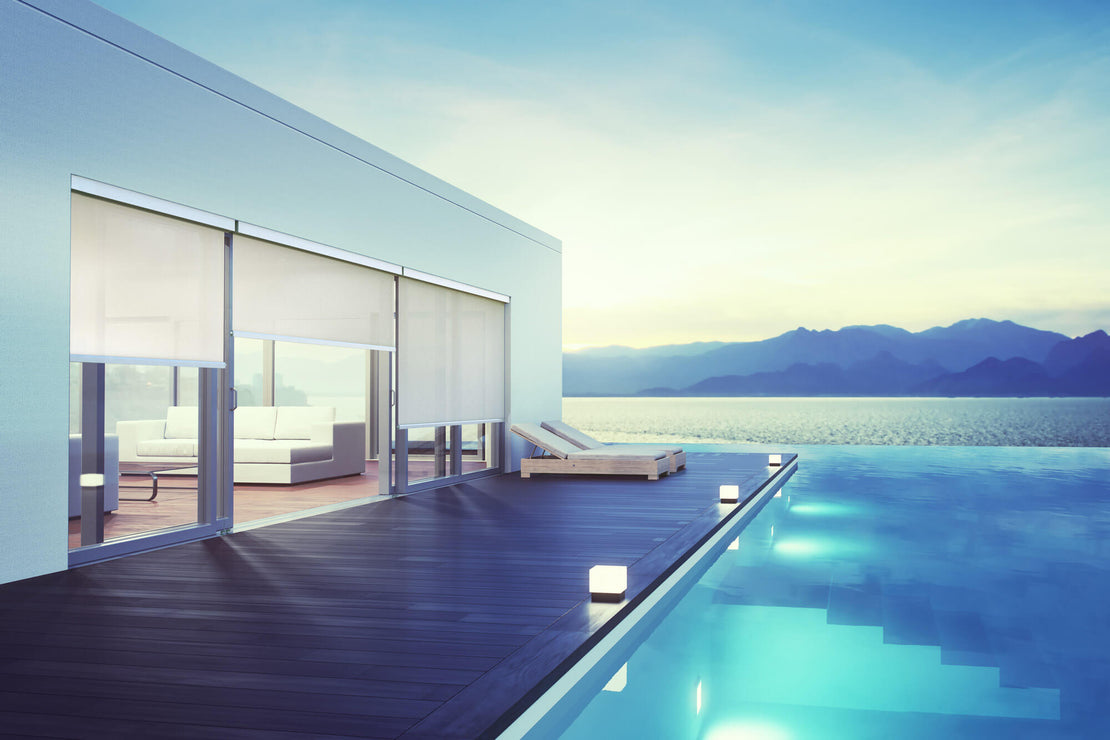

Screeny 85 GC S S07
Roller awning with 85 mm cassette available in three versions (round, square and rounded off) and stainless steel 2 mm cable guide.
- Daylighting concept
- Perfect integration into modern architecture
- High performance and standards
- High resistance to wind and water
- Patented design
- Extremely versatile
- Wind resistance, grade 3
- Maximum width: 300 cm
- Maximum height: 240 cm
- Tested and certified CE according to technical regulation 13561

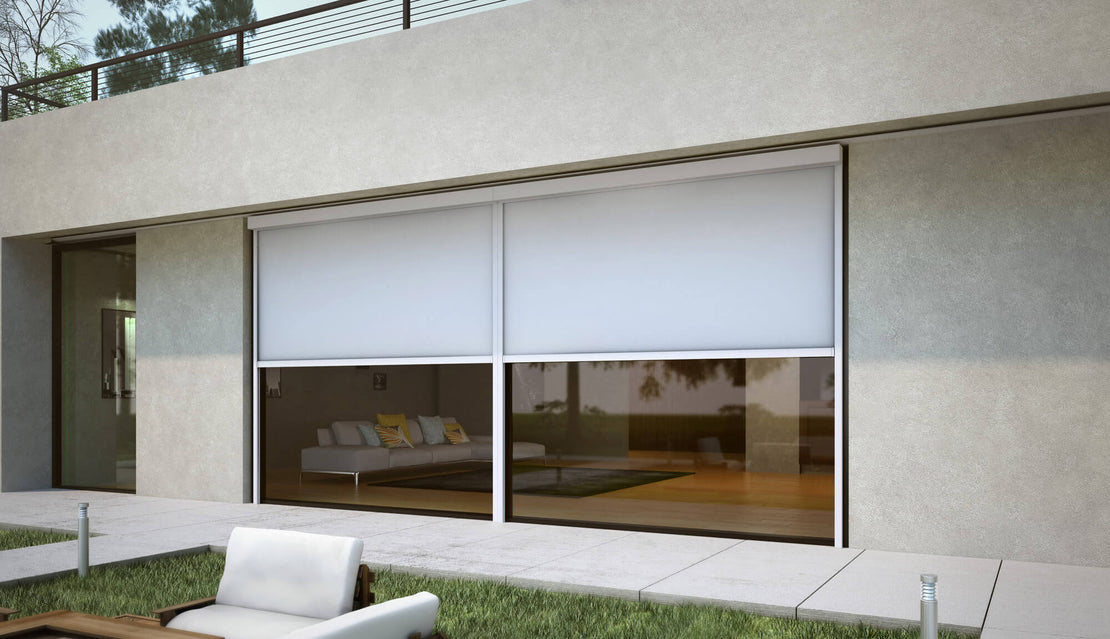

Screeny 85 GPZ S S04
Vertical awning with free-standing 85 mm cassette available in three versions (Round, Square and Rounded off) and ZIP profile guide.
Available both in single-module and multiple-module versions.
- Daylighting concept
- Perfect integration into modern architecture
- High performance and standards
- High resistance to wind and water
- Patented design
- Extremely versatile
- Wind resistance, grade 2
- Maximum width: 300 cm
- Maximum height: 240 cm
- Tested and certified CE according to technical regulation 13561

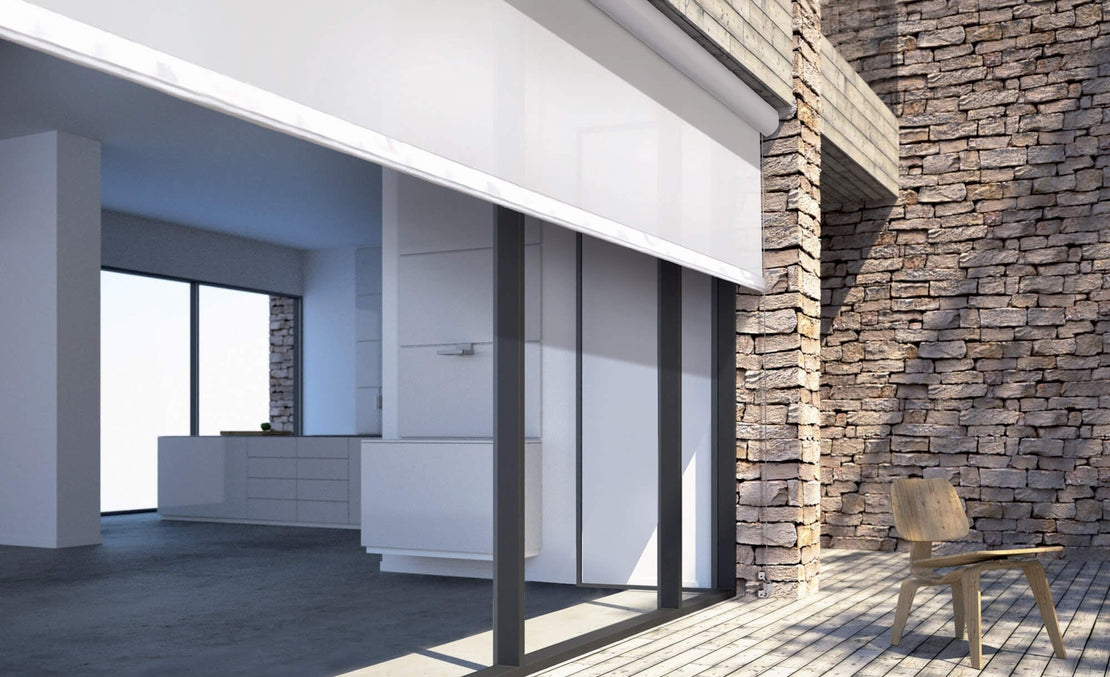

Screeny 130 GC S22
Vertical sun shade with 130 mm cassette available in two versions (round or square) and stainless steel¸ 4 mm cable guide.
- Design and innovation
- Perfect for covering windows and curtain walls
- Versatile system perfectly integrated into modern architecture
- High performance and standards
- Wind resistance, grade 2
- Maximum width: 500 cm
- Maximum height: 500 cm
- Tested and certified CE according to technical regulation 13561

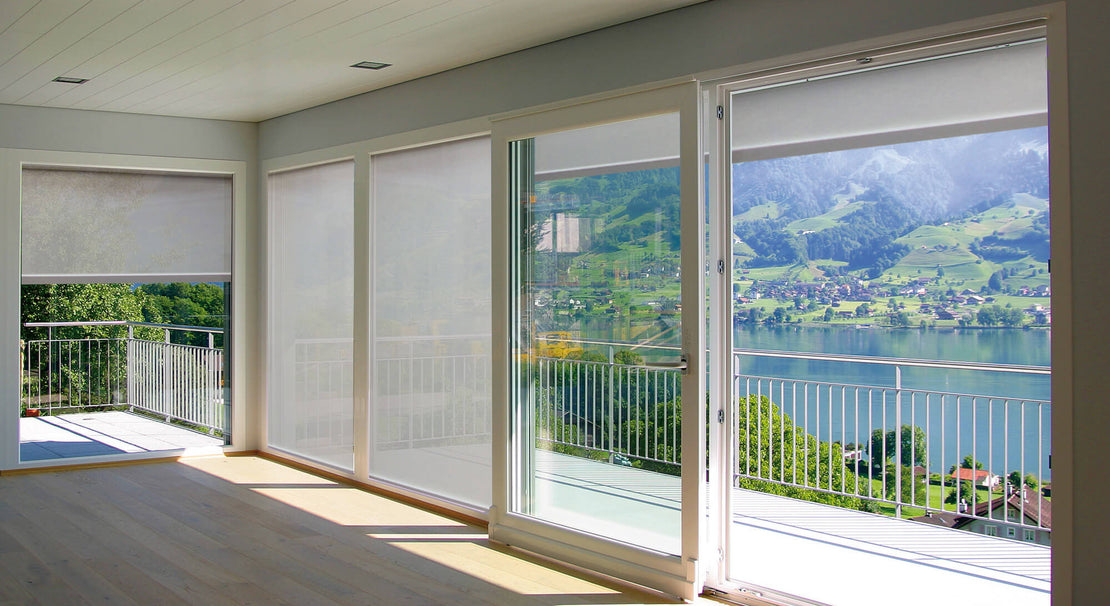

Screeny 130 GPZ unica S41
Roller awning with 130 mm cassette available in two versions (round or square) and zip profile guide. In the version with 36 mm unica guide the cassette is free-standing.
In the GPZ C version, the guide features two compensating profiles up to 25 mm on each guide (suitable for applications not at right angles, in wall recess or on the wall).
- Design and innovation
- Perfect for covering windows and curtain walls
- Versatile system perfectly integrated into modern architecture
- High performance and standards
- Wind resistance, grade 2
- Maximum width: 500 cm
- Maximum height: 500 cm
- Tested and certified CE according to technical regulation 13561

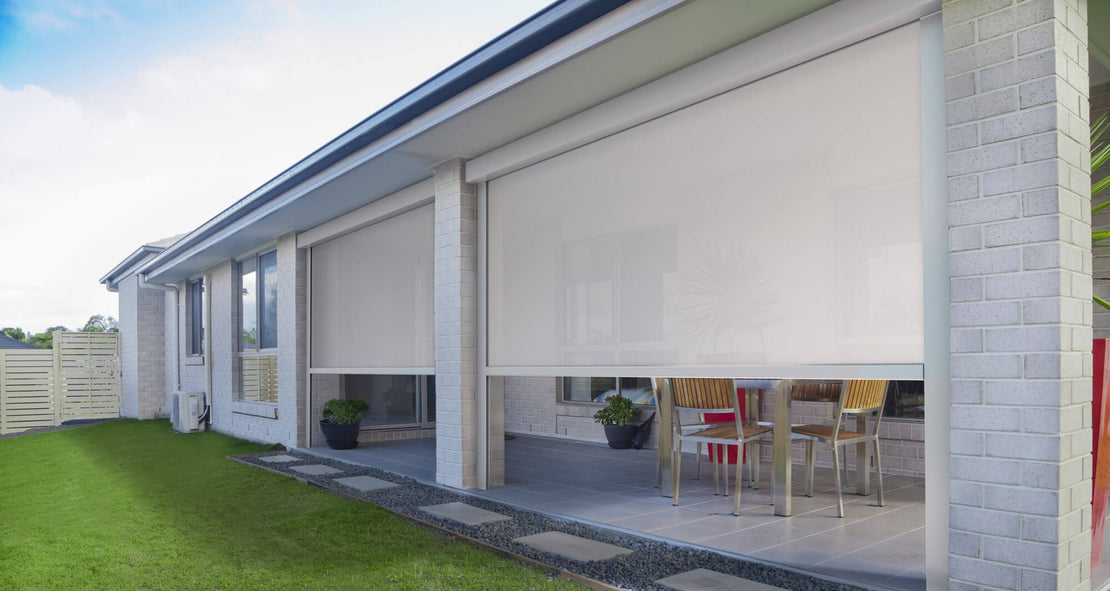

Screeny 130 GPR S24
Roller vertical blinds with 130 mm cassette available in two versions (round or square) and 120 mm free profile guide.
- Design and innovation
- Perfect for covering windows and curtain walls
- Versatile system perfectly integrated into modern architecture
- High performance and standards
- Wind resistance, grade 2
- Maximum width: 500 cm
- Maximum height: 500 cm
- Tested and certified CE according to technical regulation 13561

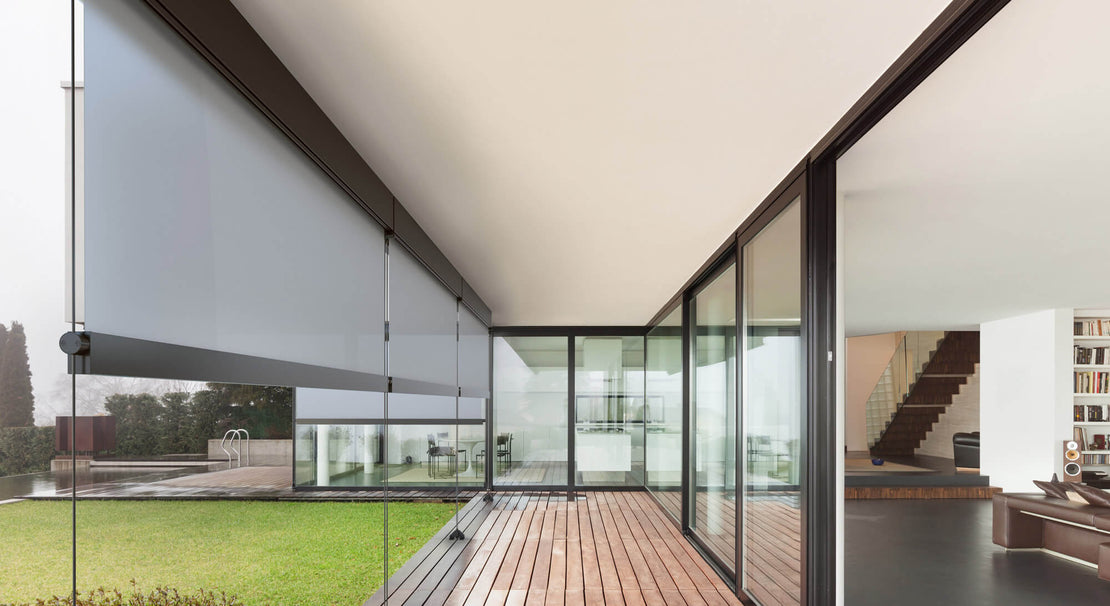

Screeny 150 GC S53
Motorised outdoor roller blinds with 150 mm cassette (round version only) and stainless steel 4 mm cable guide
- Design and innovation
- Perfect for covering windows and curtain walls
- Versatile system perfectly integrated into modern architecture
- High performance and standards
- Wind resistance, grade 1
- Maximum width: 600 cm
- Maximum height: 500 cm
- Tested and certified CE according to technical regulation 13561

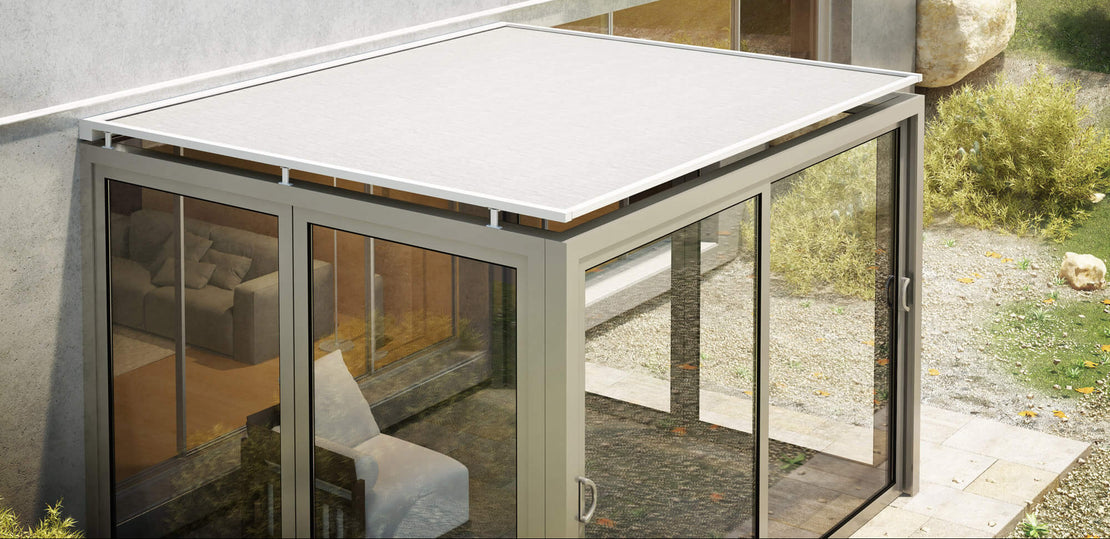

Screeny 130 GPZ Tens TS70–TO
Awning roller blind with 130 mm cassette (square version only) with ZIP guide system. Suitable for installation on windows or doors, both on the wall and in wall recess.
Thanks to the tensioning system, it can be operated when inclined. Motorized version only.
- Design and innovation
- Perfect for covering windows and curtain walls
- Versatile system perfectly integrated into modern architecture
- High performance and standards
- Design and innovation
- Perfect for covering windows and curtain walls
- Versatile system perfectly integrated into modern architecture
- High performance and standards

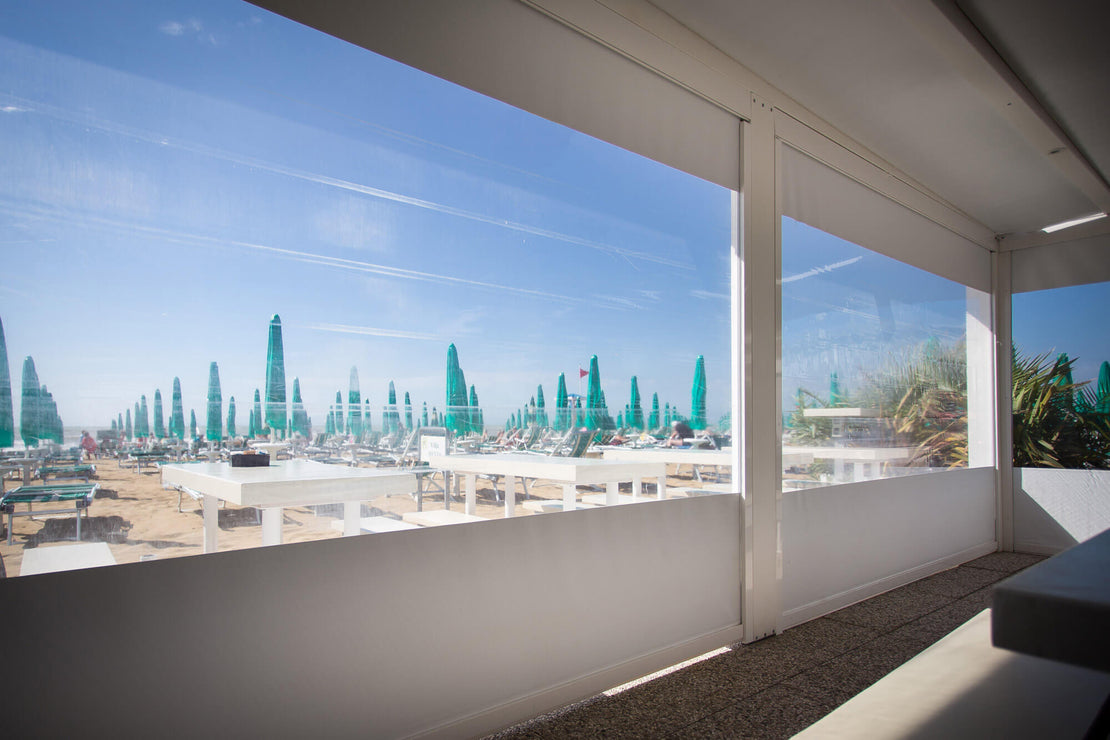

Screeny 150 GPZ unica AM S51
Roller blind with 150 mm cassette (round version only) and ZIP free profile guide. Suitable for large spans, in wall recess or wall mount.
- Design and innovation
- Perfect for covering windows and curtain walls
- Versatile system perfectly integrated into modern architecture
- High performance and standards
- Wind resistance, grade 1
- Maximum width: 600 cm
- Maximum height: 500 cm
- Tested and certified CE according to technical regulation 13561
