Dirello

Italian style

The design loved by those who recognise the Italian beauty style!

A highly sophisticated look with a functional design. These are the characteristics that make Narciso an excellence of ‘made in Italy’.
The taste for beauty blends with the elegant and long-lasting materials to create unique spaces that are able to suit different architectural contexts.

Dirello

NARCISO

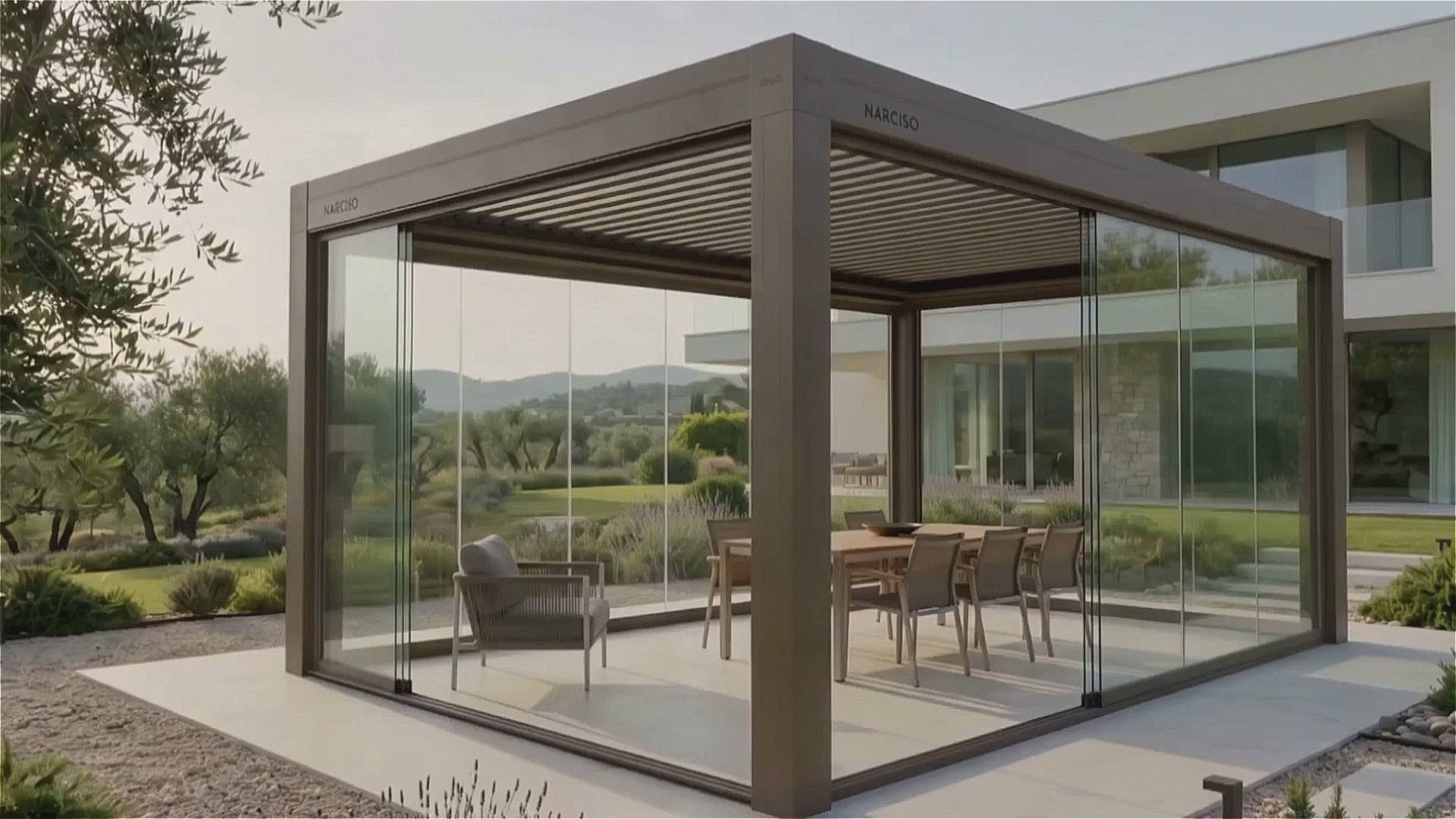

The bioclimatic pergola highly sophisticated look with a functional design, these are the characteristics that make NARCISO an excellence of ‘Made in Italy’.
The main novelty of NARCISO is the roof with innovative compact design blades, that allow maximum opening to the sky, with a reduced blade stack, increasing the amount of sunlight and natural ventilation. The innovative central opening allows the blades to slide from the centre towards the ends of the pergola, harmoniously balancing the blades stack. Narciso integrate zip screens in combination with sliding glass panels and raised platforms.

.

TECHNICAL FEATURES

  • Patented product
  • Freestanding and wall leaning version
  • Different configurations and couplings system for multiple modules
  • NARCISO/RAC is an innovative new system of retractable blades with central opening and stackable towards the ends of the pergola
  • NARCISO/R with retractable and adjustable blades system
  • NARCISO/O with adjustable blades system
  • AORS: patented retractable and adjustable blades system
  • HTS: patented blade hooking device and balancing mechanism for optimal blades closure
  • Flat roof made of extruded aluminium blades sec. 22,5×8 cm. rotation from 0° to 150°
  • Blades equipped with partial internal insulation, for acoustic comfort improvement (SoundProof)
  • Perimeter gutter sec. 20×27 mm., prepared for integrated Bora zip screen and equipped with a flap profile to protect against water splashing inside the pergola when it’s raining
  • Pillars sec 20×20 cm., with a telescopic foot, integrated downpipes and integrated sliding rails for Bora zip screen
  • Extruded aluminium frame with stainless steel parts
  • Epoxy powder coating resistant to UV rays
  • Automated movement with remote control
  • Integrated and inspectionable electrical systems
  • Product CE marking UNI EN 13561
  • Made in Italy

  • Tilting blades system in two independent sectors (DOS)
  • Perimeter Outdoor LED System – Warm white, cold white and RGB.
  • Depth Controller – Allows customisation of the depth of the bioclimatic pergola.
  • Customised sunbreaker system – Made from vertical extruded aluminium profiles, suitable for flat pergolas.
  • Climatic sensors
  • Dirello Concert integrated audio system
  • Pergola compatible with home automation systems
  • Automation App – Control different functions from your smartphone or tablet.

Optional Accessories

  • Bora – Integrated ZIP screen incorporated into the frame.
  • Phantom Glass – Panoramic windows with vertical operation.
  • Belvedere – Total-glass sliding system.
  • Scenica – Total-glass sliding system.
  • Plank – Modular raised floor.
  • SQ – Modular raised floor.

Advantages

  • Reduced stack dimension.
  • Integrated ZIP screens with sliding glass doors.
  • Electrical system pre-installation.
  • Preset automation functions.
  • Factory-tested pre-assembly.




Versions: Freestanding - Front Wall Leaning - Side Wall Leaning

  • AU Narciso/O dimensioni max: 4P - L 450 x S 596,4 / 6P - L 450 x S 996,4 AU Narciso/O max dimension: 4P - W 450 x P 596,4 / 6P - W 450 x P 996,4
  • AU Narciso/R dimensioni max: 4P - L 450 x S 596,4 / 6P - L 450 x S 716,4 AU Narciso/R max dimension: 4P - W 450 x P 596,4 / 6P - W 450 x P 716,4
  • AU Narciso/RAC dimensioni max: 4P - L 450 x S 596,4 / 6P - L 450 x S 996,4 AU Narciso/RAC max dimension: 4P - W 450 x P 596,4 / 6P - W 450 x P 996,4
  • AF Narciso/O dimensioni max: 2P - L 450 x S 596,4 / 4P - L 450 x S 996,4 AF Narciso/O max dimension: 2P - W 450 x P 596,4 / 4P - W 450 x P 996,4
  • AF Narciso/R dimensioni max: 2P - L 450 x S 596,4 / 4P - L 450 x S 716,4 AF Narciso/R max dimension: 2P - W 450 x P 596,4 / 4P - W 450 x P 716,4
  • AF Narciso/RAC dimensioni max: 2P - L 450 x S 596,4 / 4P - L 450 x S 996,4 AF Narciso/RAC max dimension: 2P - W 450 x P 596,4 / 4P - W 450 x P 996,4
  • AL Narciso/O dimensioni max: 2P - L 450 x S 596,4 / 3P - L 450 x S 996,4 AL Narciso/O max dimension: 2P - W 450 x P 596,4 / 3P - W 450 x P 996,4
  • AL Narciso/R dimensioni max: 2P - L 450 x S 596,4 / 3P - L 450 x S 716,4 AL Narciso/R max dimension: 2P - W 450 x P 596,4 / 3P - W 450 x P 716,4
  • AL Narciso/RAC dimensioni max: 2P - L 450 x S 596,4 / 3P - L 450 x S 996,4 AL Narciso/RAC max dimension: 2P - W 450 x P 596,4 / 3P - W 450 x P 996,4

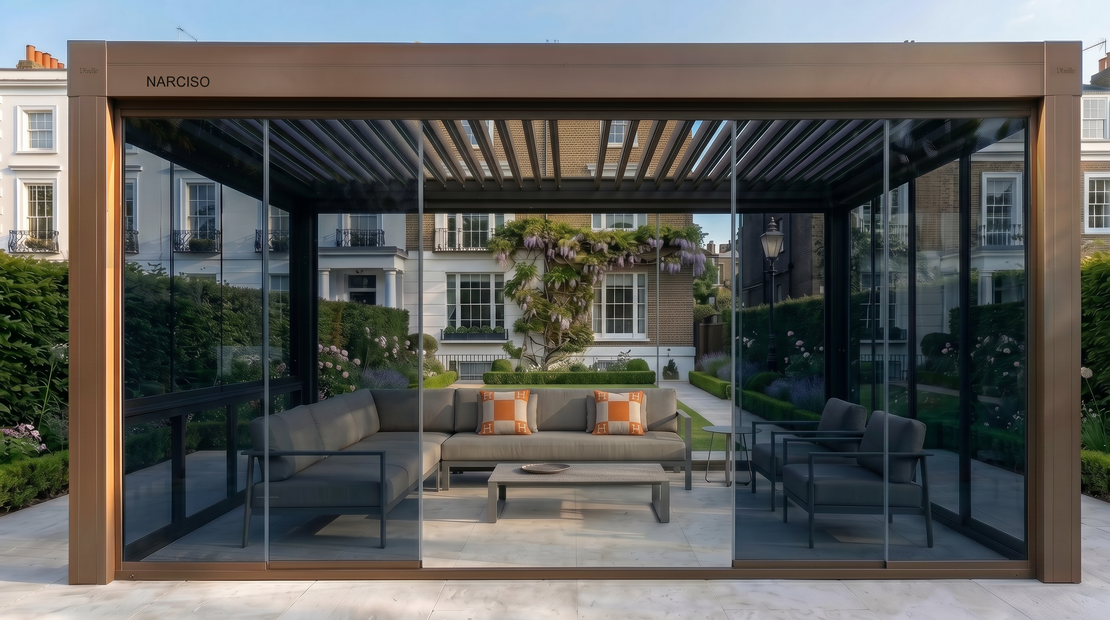

NARCISO

The only one in the World

The main novelty of NARCISO is the roof with innovative
compact design blades, that allow maximum opening to the
sky, with a reduced blade stack, increasing the amount of
light and natural ventilation. The innovative central opening
allows the blades to slide from the centre towards the ends
of the pergola, harmoniously balancing the blades stack.
NARCISO is also available in lateral rectractable blades and
tilting versions, can be configured in different modules and is
fully customisable by integrating zip screen in combination
with sliding glass and raised platforms, making the outdoor
space enjoyable during all of the seasons of the year


Guide Price for 4x4
£22,000.00 (EX Vat)

Price range from £22,000.00 (EX Vat) to £50,000 (Ex Vat)



Dirello

VITRUVIA

The Dirello Vitruvia is a premium yet accessible bioclimatic aluminum pergola designed to enhance outdoor spaces. Featuring adjustable louvers and integrated lighting, it naturally regulates light and ventilation while guiding rainwater through a hidden drainage system. It can be customized with ZIP screens or sliding glass doors. Key Features

  • Bioclimatic Design: Features adjustable blades that control sunlight and airflow to create a comfortable microclimate.
  • Integrated Water Management: When closed, the roof guides rainwater into a built-in collection and drainage system.
  • Integrated Lighting: Comes with built-in perimeter LED lighting to easily transition the space from day to night.
  • Custom Enclosures: Compatible with motorized ZIP blinds, as well as Scenica or Belvedere glass enclosures for year-round protection.
  • Material & Build: Constructed from high-quality extruded aluminium for durability and a modern, sleek profile

Guide Price for
£8,000.00 (EX Vat)
